ZH Connector 1.5mm Pitch is replacement of JST ZH connector. It’s widely use in wire to board connectors.
Component and lts Material:

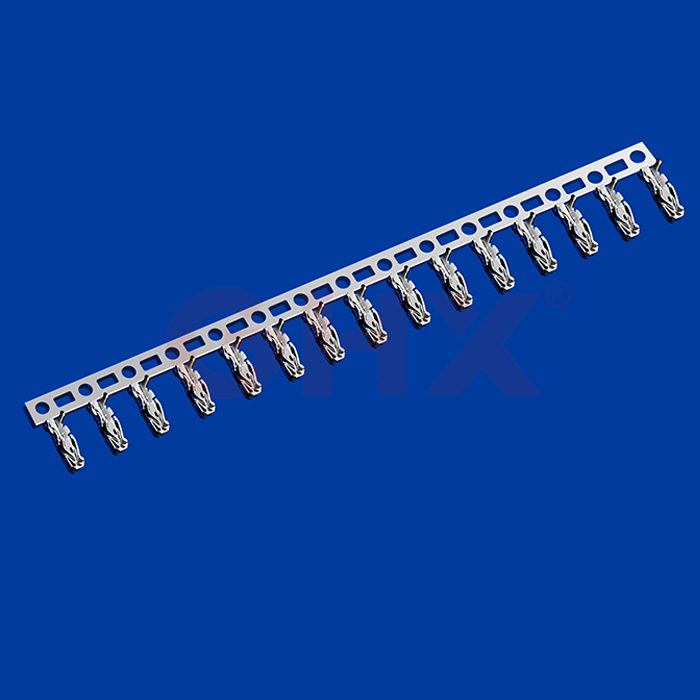

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Technical Parameters
| Name | ZH Connector Series |
| Contact Pitch | 1.5mm |
| No.of Contacts | 02 to 12 positions |
| Current Rating | 1A |
| Voltage Rating | 125V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row |
| Temperature Range | -25°C to +85°C |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥500mΩ |
| Withstand Voltage | 500V AC/minute |
| Applicable Wire | AWG #32 to #26 |
| Applicable PC Board Thickness | 1.6mm |
| Compatible | Cross JST ZH connector Series |
