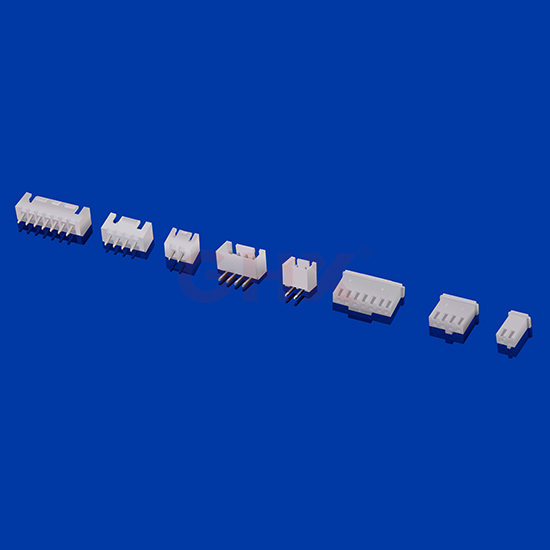

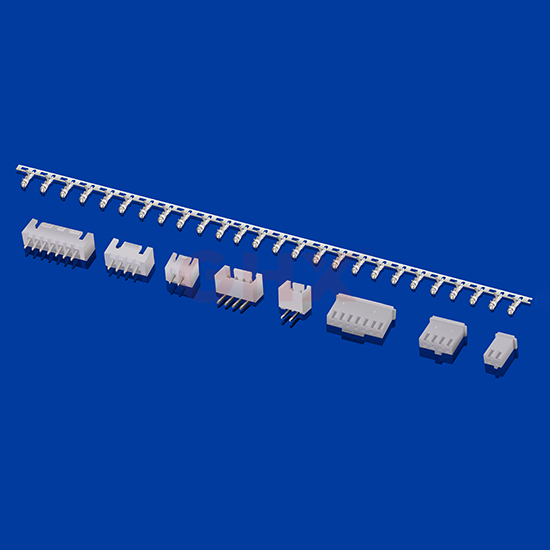

XHB Connector 2.5mm Pitch is replacement of YEONHO SMH250-NN connectors. 2.5mm pitch.lt’s widely used in wire to board connectors.Fully shrouded header, crimp style.
Component and lts Material:

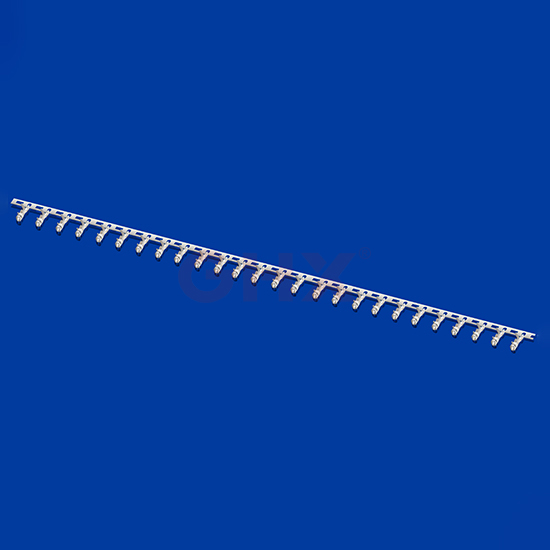

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Wafer: Nylon 66 UL94V-0 & Brass/Tin-plated
Technical Parameters：
| Name | XHB Connector Series |
| Gender | Male |
| Contact Pitch | 2.5mm |
| No.of Contacts | 02 to 20 positions |
| Current Rating | 3.0A AC,DC |
| Voltage Rating | 250V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row |
| Color | White |
| Temperature Range | -25°C to+85℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1000V AC/minute |
| Applicable Wire | AWG #30 to #22 |
| Applicable PC Board Thickness | 1.2 to 1.6mm |
| Compatible | Cross YEONHO SMH250-NN Connector Series |
