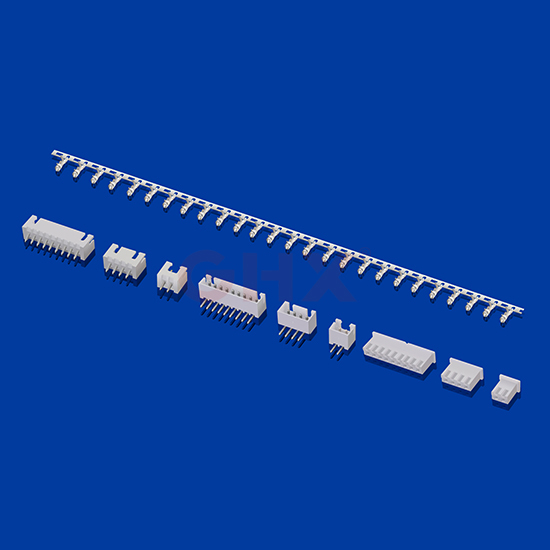

XH Connector 2.5mm Pitch is replacement of JST XH connectors 2.5mm pitch. It’s widely used in wire to board connectors.Fully shrouded header, crimp style.
Component and Its Material:
Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Wafer: Nylon 66 UL94V-0 & Brass/Tin-plated
Technical Parameters：
| Name | XH Connector Series |
| Gender | Male&Female |
| Contact Pitch | 2.5mm |
| No.of Contacts | 02 to 20 positions |
| Current Rating | 3.0A AC,DC |
| Voltage Rating | 250V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row |
| Color | White |
| Temperature Range | -25°C to+85℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1000V AC/minute |
| Applicable Wire | AWG #30 to #22 |
| Applicable PC Board Thickness | 1.6mm |
| Compatible | Cross JST XH Connector Series |
