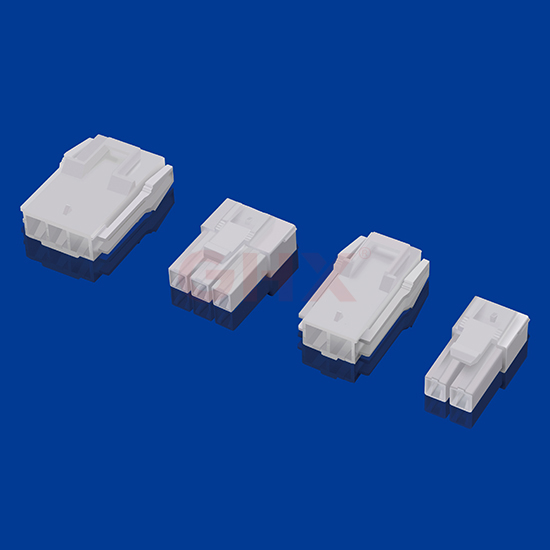

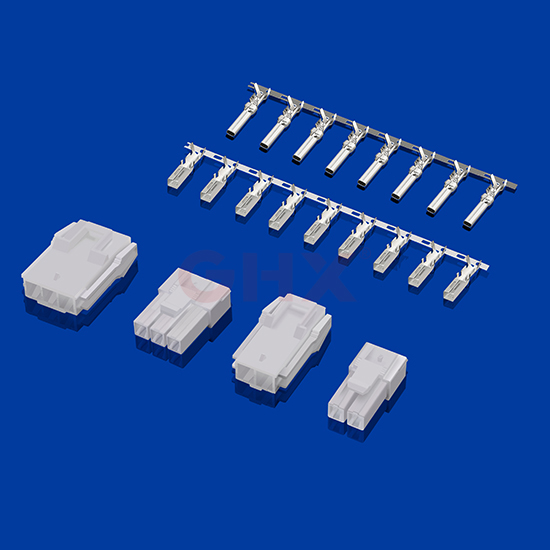

VL Connector 6.2mm Pitch is replacement KET2.0 connector 6.2mm pitch, lt’s widely used in wire to wire connectors.
Component and Its Material:

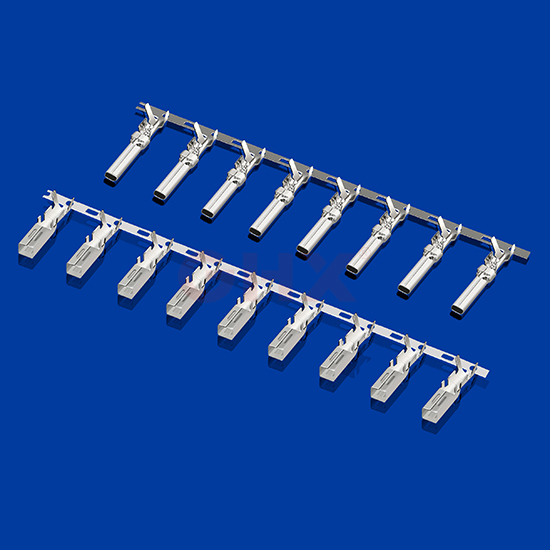

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Technical Parameters：
| Name | VL Connector Series |
| Gender | Male&Female |
| Contact Pitch | 6.2mm |
| No.of Contacts | 02 to 04 position |
| Current Rating | 13A AC,DC |
| Voltage Rating | 300V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row & Double Row |
| Color | White |
| Temperature Range | -25°C to+85℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1500V AC/minute |
| Applicable Wire | AWG #26 to #20 |
| Applicable PC Board Thickness | 1.6 to 2.0mm |
| Compatible | Cross KET φ2.0 Series |
