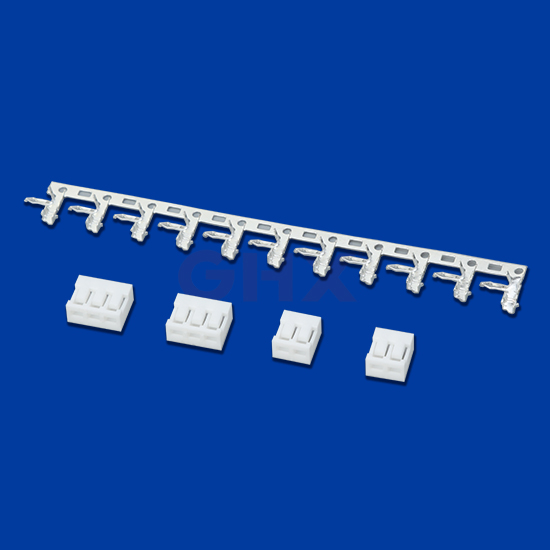

JC25 Connector 2.5mm Pitch is replacement of CVILUX CI27 connectors 2.5mm pitch. It’s widely used in wire to P.C.BOARD-IN connector.
Component and Its Material:

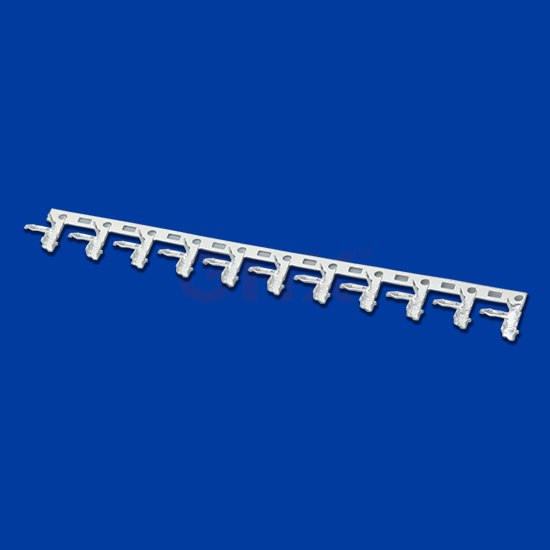

Terminal: Phosphor bronze

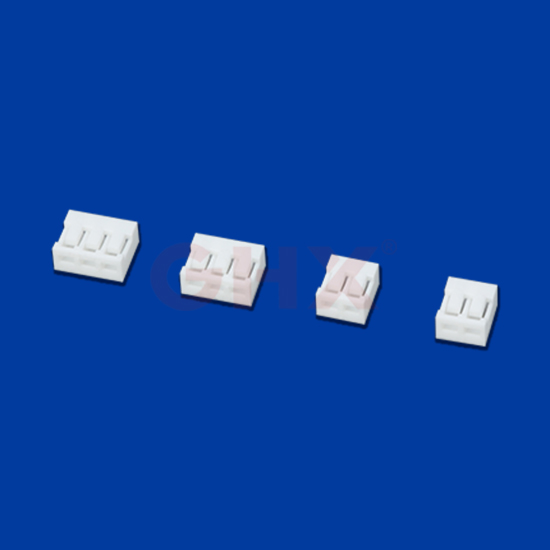

Housing: Nylon 66 UL94V-0
Technical Parameters：
| Name | JC25 Connector Series |
| Gender | Male&Female |
| Contact Pitch | 2.5mm |
| No.of Contacts | 02 to 16 positions |
| Current Rating | 2.0A AC,DC |
| Voltage Rating | 250V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row |
| Color | White |
| Temperature Range | -25°C to+85℃ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 800V AC/minute |
| Applicable Wire | AWG #28 to #22 |
| Applicable PC Board Thickness | 1.2 to 1.6mm |
| Compatible | Cross CVILUX CI27 Connector Series |
