Pitch: 2.0mm
Cross: YEONHO SMH200-NN connector Series
HY Connector 2.0mm Pitch is replacement of YEONHO SMH200-NN connector. It’s widely use in wire to board connectors.
Component and lts Material:

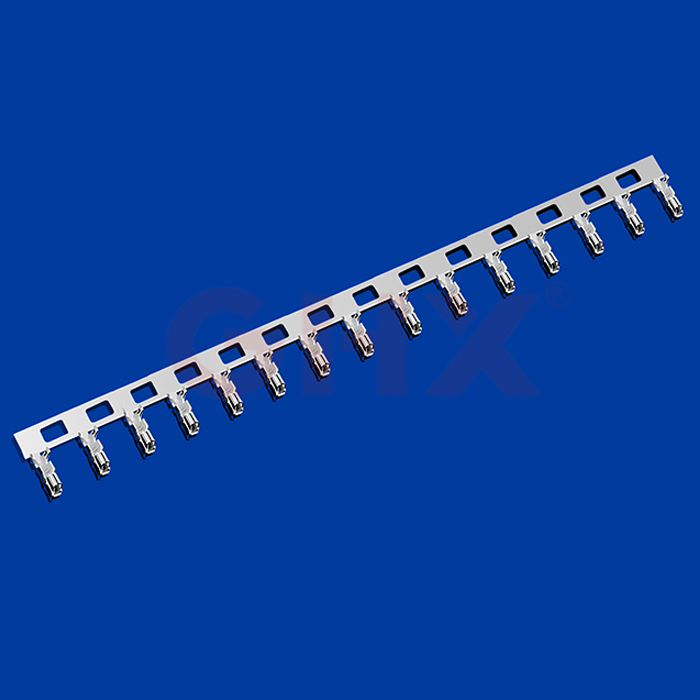

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Technical Parameters
| Name | HY Connector Series |
| Contact Pitch | 2.0mm |
| No.of Contacts | 02 to 12 positions |
| Current Rating | 3A |
| Voltage Rating | 250V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row |
| Temperature Range | -25°C to +85°C |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1000V AC/minute |
| Applicable Wire | AWG #28 to #22 |
| Applicable PC Board Thickness | 1.6mm |
| Compatible | Cross YEONHO SMH200-NN connector Series |
