Pitch:4.2mm
Cross:MOLEX MINI-FIT 4.2 Connector Series

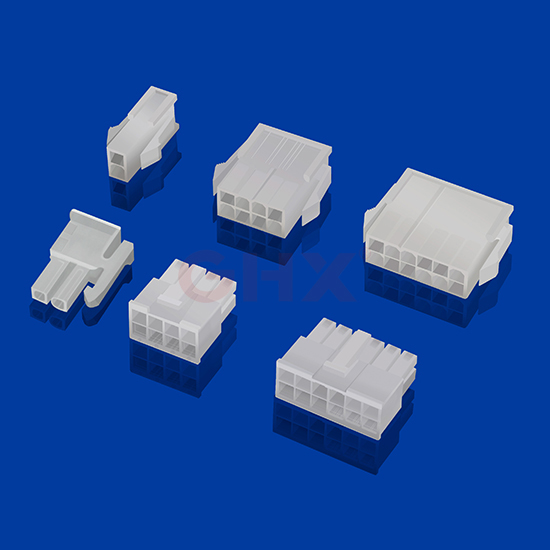

5557&5559 Connector 4.2mm Pitch are replacement MOLEX MINI-FIT 4.2 connectors.4.2mm pitch,lt’s widely use wire to wire connectors.
Component and Its Material:

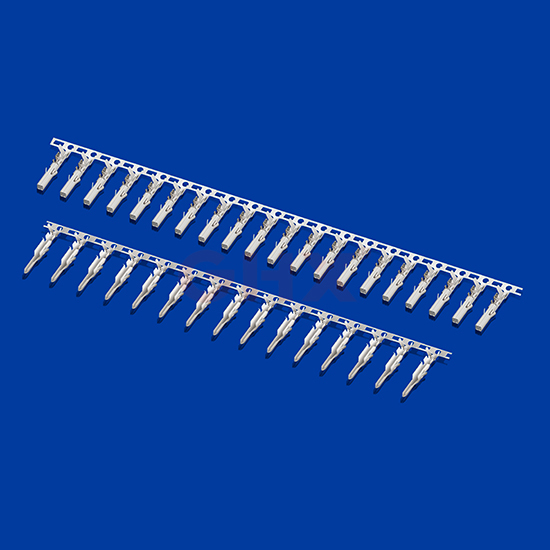

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Technical Parameters：
| Name | 5557&5559 Connector Series |
| Contact Pitch | 4.2mm |
| No.of Contacts | 02 to 06, 02×2 to 02×12 position |
| Current Rating | 9.0A AC,DC |
| Voltage Rating | 300V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row & Double Row |
| Color | White |
| Temperature Range | -25°C to+85℃ |
| Contact Resistance | ≤15mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1500V AC/minute |
| Applicable Wire | AWG #28 to #16 |
| Compatible | Cross MOLEX MINI-FIT 4.2 Connector Series |
