Pitch:5.08mm
Cross: MOLEX 5058 Connector Series

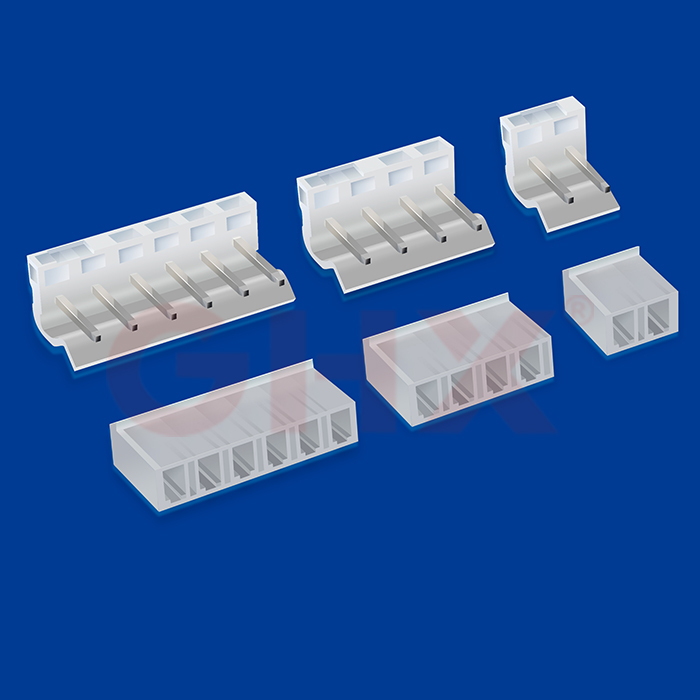

5058/5.08 Connector 5.08mm Pitch is replacement of MOLEX 5058 connectors. It’s widely used in wire to board connectors.
Component and lts Material:

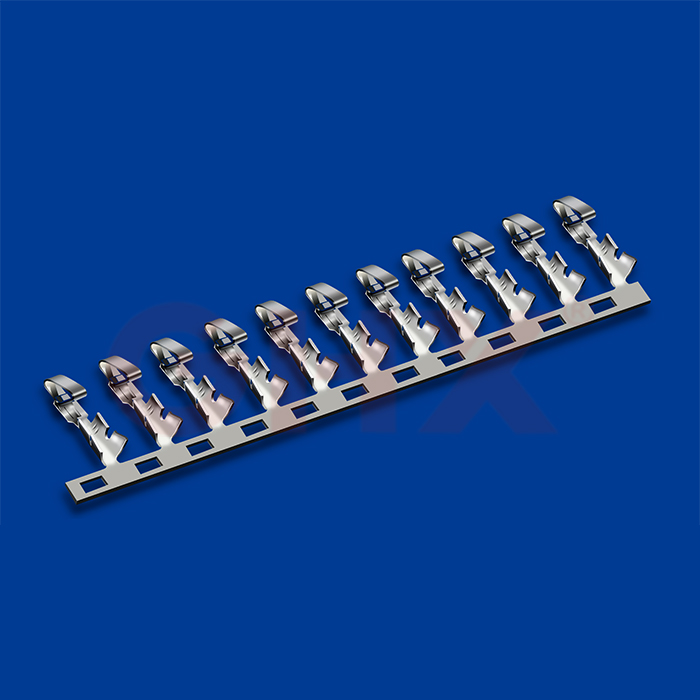

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Wafer: Nylon 66 UL94V-0 & Brass/Tin-plated
Technical Parameters
| Name | 5058/5.08 Connector Series |
| Gender | Male & Female |
| Contact Pitch | 5.08mm |
| No.of Contacts | 02 to 14 positions |
| Current Rating | 5.0A AC,DC |
| Voltage Rating | 250V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row |
| Color | White |
| Temperature Range | -25°C to +85°C |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1500V AC/minute |
| Applicable Wire | AWG #24 to #18 |
| Applicable PC Board Thickness | 1.6mm |
| Compatible | Cross MOLEX 5058 Connector Series |
