Pitch: 6.2mm Cross: MOLEX 35150/35151 Connector Series
35150/35151-0410 Connector 6.2mm Pitch is replacement of MOLEX 35150/35151 connectors. It’s widely used in wire to wire connectors.
Component and lts Material：

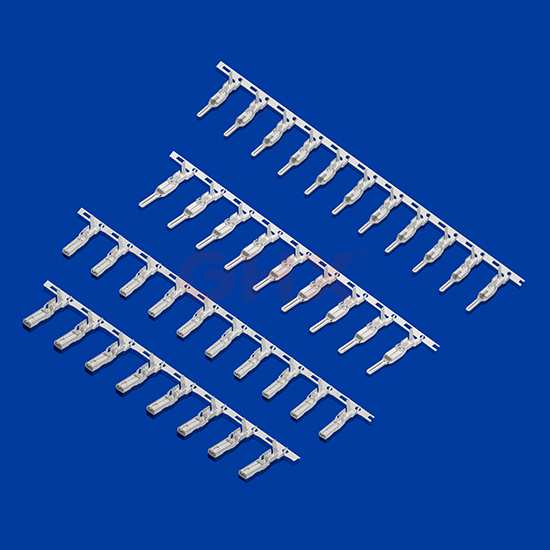

Terminal: Phosphor bronze

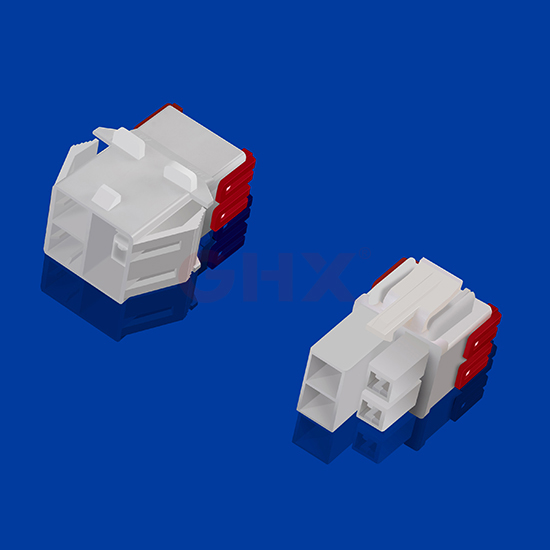

Housing: Nylon 66 UL94V-0
Technical Parameters
| Name | 35150/35151-0410 Connector Series |
| Gender | Male & Female |
| Contact Pitch | 6.2mm |
| No.of Contacts | 1/2/3/4/6 positions |
| Current Rating | 15.0A AC,DC |
| Voltage Rating | 300V AC,DC |
| Material | PA66 and Brass Tin |
| Row | Single Row & Double Row |
| Color | White |
| Temperature Range | -25°C to +85°C |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000mΩ |
| Withstand Voltage | 1500V AC/minute |
| Applicable Wire | AWG #24 to #14 |
| Applicable PC Board Thickness | 0.8 to 2.4mm |
| Compatible | Cross MOLEX 35150/35151 Connector Series |
