How to Connect Wires to a PCB

Printed Circuit Boards (PCBs) are widely used in electronic devices. They are an essential component that provides connectivity and support for electronic components. Connecting wires to a PCB is a fundamental process in electronic devices.

The most common methods used to connect wires to a PCB are Soldering, Crimping and Screw Terminals.

1.Soldering

Soldering is the most common method used to attach wires to a PCB.  It involves melting a metal alloy, called solder, to fuse the wire and the PCB.  To solder wires to a PCB, you will need a soldering iron, solder, and flux.

2.Crimping

Crimping is another method used to connect wires to a PCB.  It involves compressing a terminal or connector onto the wire to create a secure attachment.  Crimping requires a crimping tool and terminals or connectors.

3.Screw Terminals

Screw terminals are an alternative to soldering or crimping when attaching wires to a PCB. They are commonly used in larger electronic devices and industries that require servicing. Screw terminals allow the wire to be easily disconnected without having to re-solder or re-crimp.

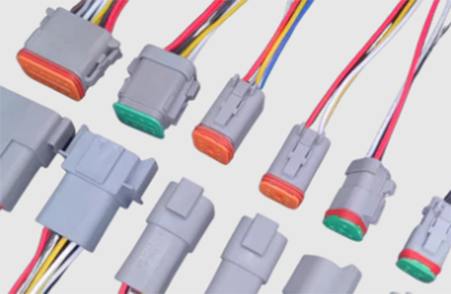

GHX produce a large range of wire to board connectors that meet the requirements of the method Crimping. All of our wire to board connectors are of the highest quality and competitively priced. Our company has been committed to providing high-quality products and services that meet the needs of our customers. If you need any help finding the right product for your application, please contact us at tracy@brown-squirrel-234309.hostingersite.com and we will be happy to assist you.
