Component of Automotive Connectors

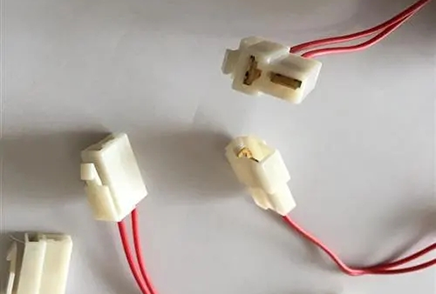

As the world becomes more connected than ever, the importance of reliable and efficient automotive connectors cannot be understated. The component parts of automotive connector include terminals and housing.

1.Terminal:
A terminal is a small metal piece that connects a wire to the mating part of the connector. Terminals come in different shapes and sizes and are made of various materials such as copper, brass, and nickel. The shape of the terminal determines the type of wire it can hold and the mating part of the connector it connects to. The most common types of terminals used in wire-to-wire connectors include blade terminals, pin terminals, and ring terminals.

2.Housing:
The housing is an enclosure made of plastic or metal that surrounds and protects the electrical contacts within. It is responsible for ensuring that the terminals are aligned correctly, maintaining a tight fit and keeping the contacts in place. Terminal housings come in a range of sizes, shapes, and materials to suit various connector applications.

One key feature of a housing is its ability to resist moisture and dust. The housing must be made from a material that can withstand the rigors of automotive use and is weather-resistant. A low-quality housing can allow moisture to penetrate, which can lead to electrical faults, circuit damage, and even fire.

In conclusion, the terminal and housing are essential components of automotive connectors. They are designed to withstand harsh environments, resist moisture and dust. The ability to select the correct connector is a vital aspect of ensuring reliable and efficient operation of a vehicle’s electrical systems.
